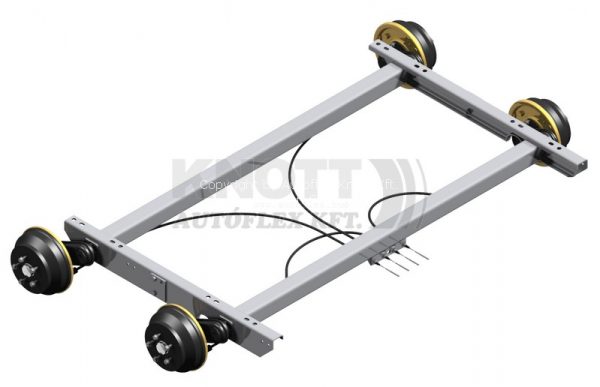

Description
Mounted with braked hub F250.
Can be used with KNOTT type overrun brake with the same load capacity.
Additional information
| Type | VGDB 35MV |
|---|---|
| Hub type | F250 |
| Pitch circle (mm) | 112×5 |
| ECE-Protokoll number of brake | 361-007-94 |
| Offset (mm) | 26-35 |
| Hub face distance 'c' (mm) | 2270 |
| Wheel track 'a' (mm) | 2200 |
| Bracket center 'b' (mm) | 1800 |
| Axle base (mm) | 750 |
| Length of axle body 'l' (mm) | 1872 |
| Axle body size (mm) | 80×80×5 |
| c-b/2 size (mm) | 235 |
| Maximum axle load (kg) | 3500 |
| Speed limit max. (km/h) | 140 |
| Applicable din. Tyre diameter max. (m) | 0.720 |
| Applicable din. Tyre diameter min. (m) | 0.506 |
